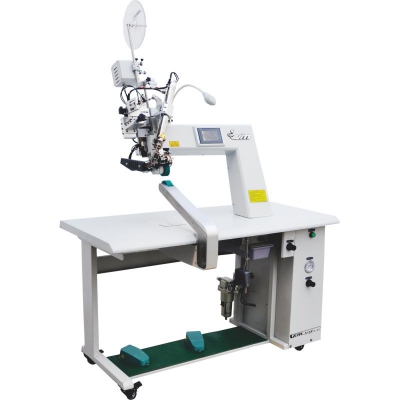

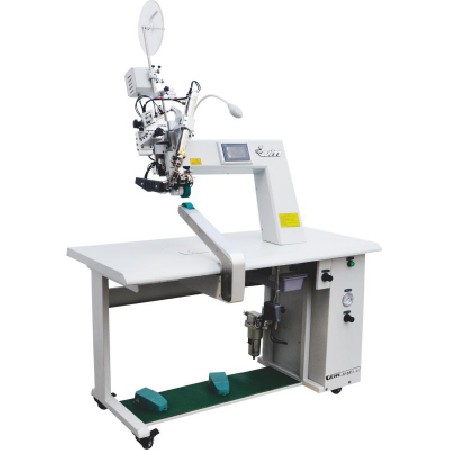

Hot air seam sealing machine V-2A+ (L/A)
2021-03-29 497
产品参数/Product parameters
型号 | Model | V-2A+(L A)(差速）(Speed Differential) |
电压 | Voltage | AC220V50/60Hz |
额定功率 | Rating Efficiency | 2.8KW |
压缩空气 | Air Supply | 0.35-0.5MPa |
热合速度 | Heat Sealing Speed | 1-25m/min |
风嘴最高温度 | Maximum Temperature of Nozzle | 700℃ |
上下压轮宽度 | Pinch roller Width | ∅65×25mm(上轮）30mm(下轮） |
外型尺寸 | Exterior size | 1300mm×600mm×1530mm |
净重 | Net weight | 130kg |
可选滚轮 | Optional Size of Roller | 8-25mm |
V-2A+(L A)性能参数
1. 额定功率2.8KW，根据发热温度而定。
2. 额定电压：AC～220V 额定频率50/60Hz。
3. 发热管最高温度≤700℃。
4. 本机总气压：0.35～0.5MPa。
5. 上柱压轮压力为0.01～0.5MPa可调。
6. 速度：1～25m/min。
7. 外形尺寸：（1300 ×600 × 1530）mm。
8. 压轮宽度：25mm（1英寸）。
9. 压轮直径：65 mm。
10. 热风枪嘴宽度：22 mm。
11. 噪音：小于80 dbA。
当产品图片和产品参数与实际产品不一致时，以实际产品为准，对此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
