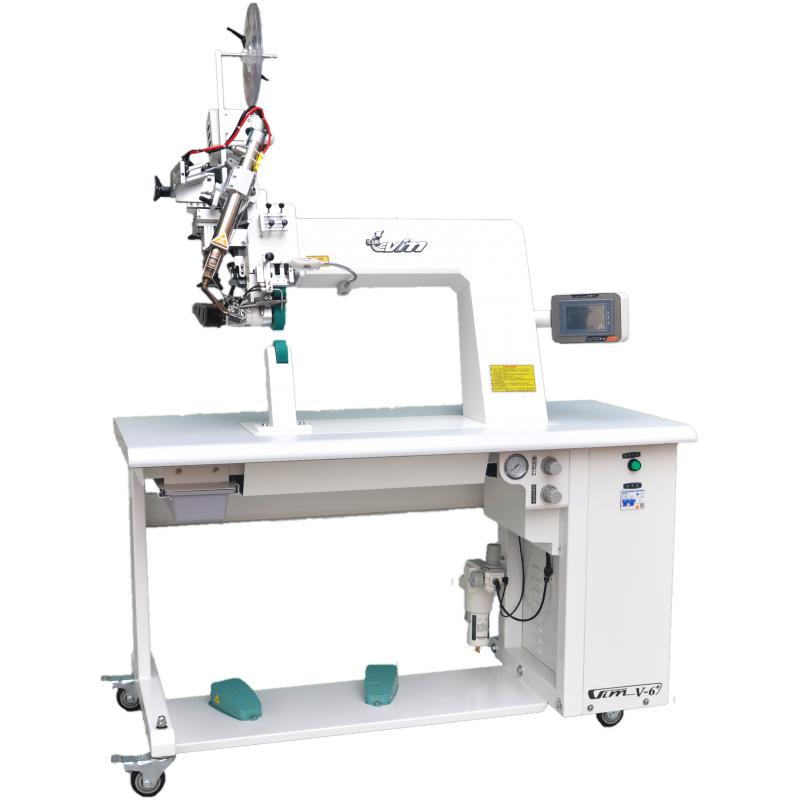

Hot air seam sealing machine V-6+
2020-12-04 671
产品参数/Product parameters
型号 | Model | V-6+(差速）(Speed Differential) |
电压 | Voltage | AC220V50/60Hz |
额定功率 | Rating Efficiency | 2.8KW |
压缩空气 | Air Supply | 0.35-0.5MPa |
热合速度 | Heat Sealing Speed | 1-24.8m/min |
风嘴最高温度 | Maximum Temperature of Nozzle | 700℃ |
上下压轮宽度 | Pinch roller Width | ∅65×25mm |
外型尺寸 | Exterior size | 1300mm×600mm×1600mm |
净重 | Net weight | 150kg |
可选滚轮 | Optional Size of Roller | 8-25mm |
V-6+性能参数
A．功率约2800W，根据发热温度而定，额定电压：AC～220V，额定频率50Hz。
B．发热管最高温度≤700℃。
C．本机总气压：0.35～0.5MPa。
D．上柱压轮压力为0.1～0.15 MPa。
E．速度：1~24.8m/min。
F．外形尺寸：1300×600×1530mm。
G．上轮压降行程：18～25mm。
H．压轮宽度：25mm（1英寸）。
I．压轮直径：65mm。
J．热风枪嘴宽度：24mm。
K．噪音：小于80dbA。
当产品图片和产品参数与实际产品不一致时，以实际产品为准，对此不另行通知
When the product picture and product parameters are inconsistent with the actual product, the actual product shall prevail, without further notice
-
