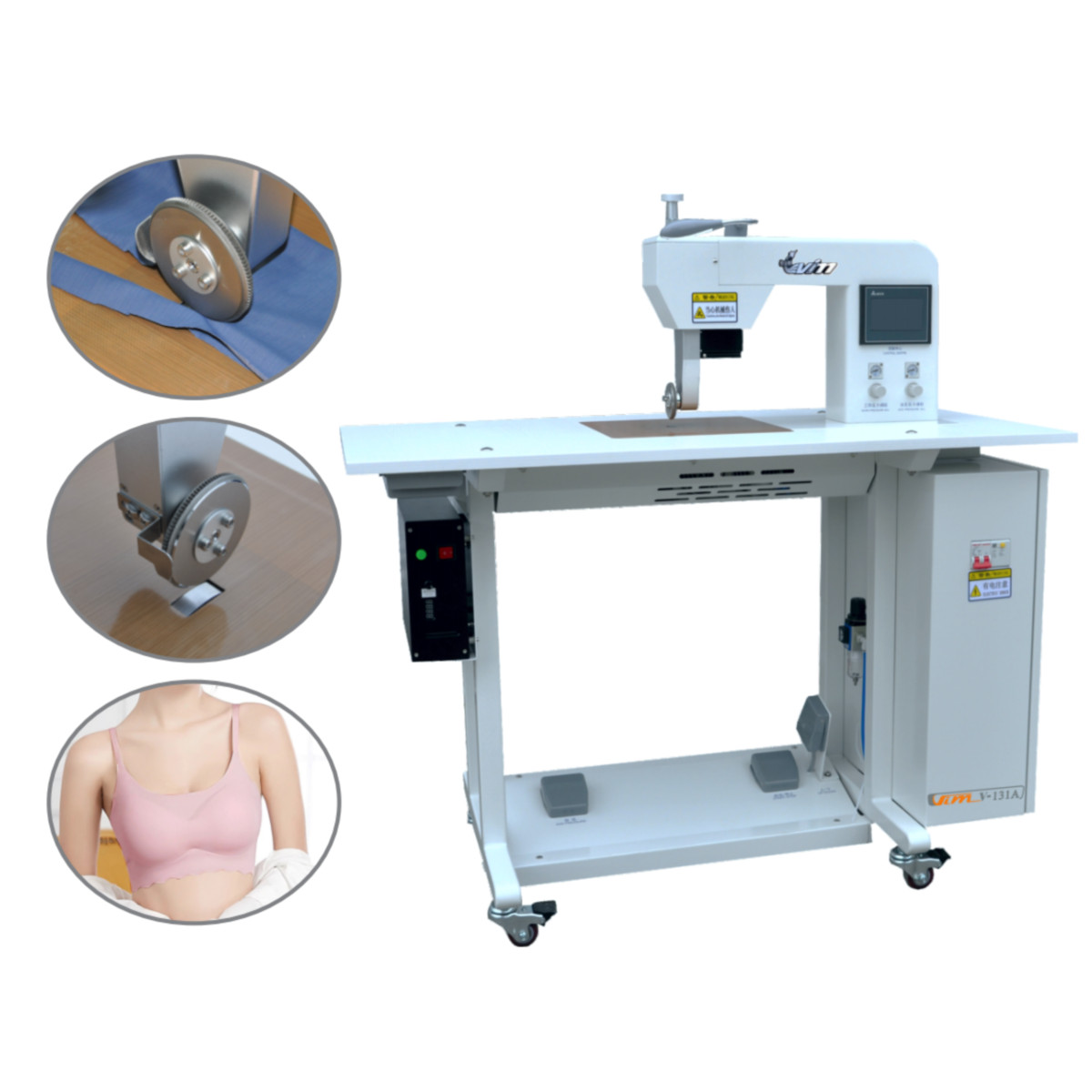

V-131A
2025-12-29 117
| APPLICABLE SCOPE(Fusion Cutting+Bonding)/适用范围(熔切+粘合) |
| ●Lightweight three-layer fabric,assault jacket,backpack. |
| ●Outdoor leisurewear,casual pants,seamless boat socks. |
| ●Bra,underwear,panties,seamless T-shirt |
| ●Waterproof fabric,spandex fabric,elastic fabric are all applicable |
| ●轻薄三层面料、冲锋衣、背包。 |
| ●户外休闲服、休闲裤、无缝船袜。 |
| ●文胸、内衣、内裤、无缝T 恤。 |
| ●防水面料、绦纶面料、弹性面料均可 |
| Features/特点 | |
| ●Ultrasonic wavelength 35K. | |
| ●The power is adjustable,and it can cut variety of fabrics. | |
| ●Using with PLC control,color touch screen interface,intelligent and precise. | |
| ●The pressure of cutter wheel is adjustable to increase the service life of the upper anddown molds | |
| ●Different patterns of cutter wheels can be customized as required. | |
| ●超声波波长35K。 | ●切轮压力可调，提高上下模的使用寿命 |
| ●功率大小可调，混合切割各种布料。 | ●可按要求定做不同花纹的切轮。 |
| ●采用PLC控制，彩色触接屏界面、智能、精准。 | |
| V-131A | Product parameters | 产品参数 | |||
| Voltage 电压 | Rating Efhciency 额定功率 | Air Supply 压缩空气 | Speed 速度 | Exterior Size 外型尺寸 | Net Weight 净重 |
| AC 220V 50/60Hz | 0.6KW | 0.35-0.5Mpa | 0-20m/min | 1160×600×1230 L×W×H(mm) | 100kg |
-
